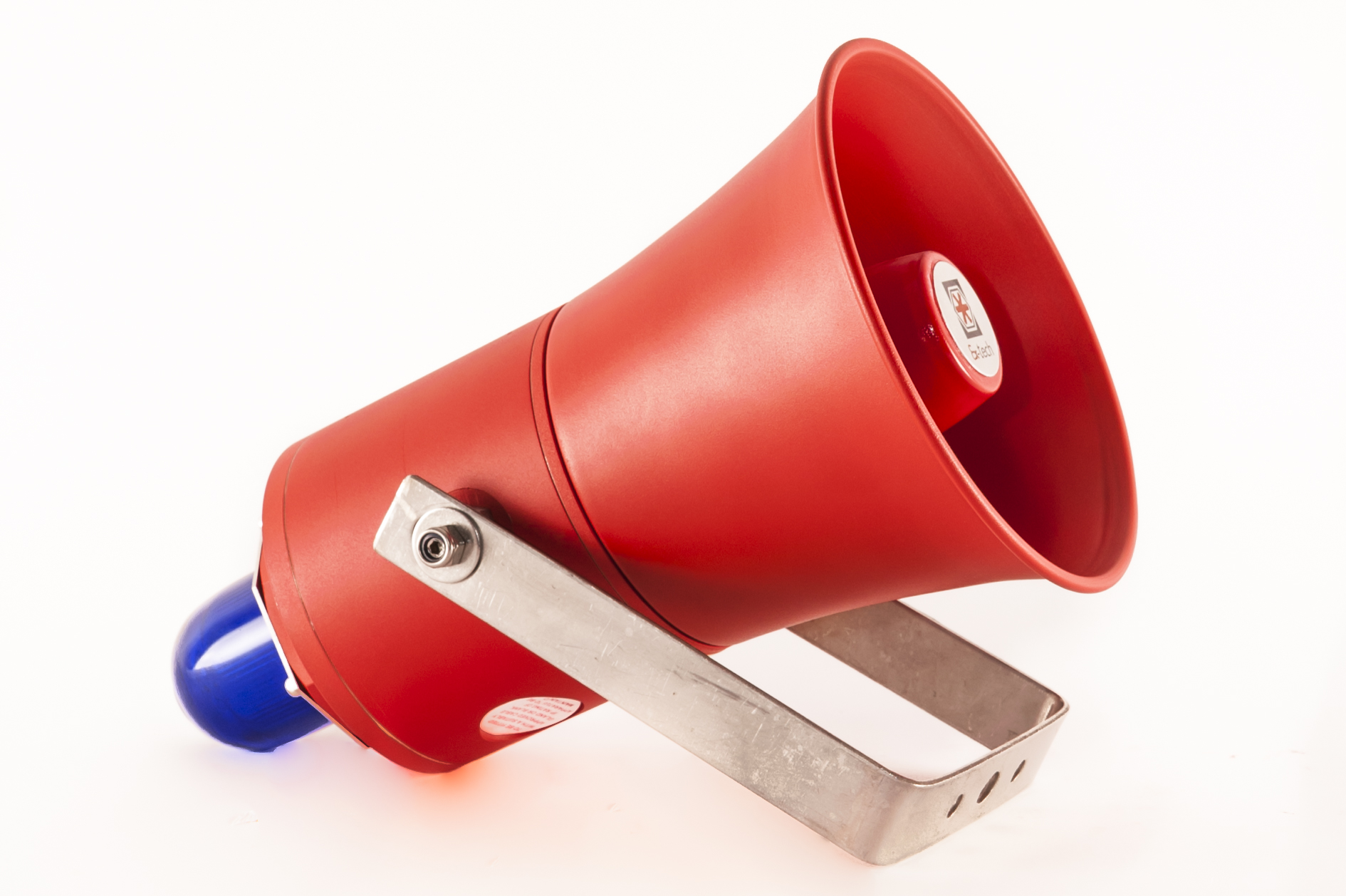

SB 125 1 In Stainless Steel

SB125-1 in stainless steel. This combined product is certified for use in Atex explosive atmosphere, zone 1 & 2 for gas and zone 21 & 22 for dust. It is dedicated for Oil & Gas, chemical, petrochemical, pharmacy industries, marine and Offshore applications. It’s designed for corrosive environnements and hazardous area. This sounder, according to user control system, can be set with one tone among 59 prerecorded tones. The beacon can be delivered with two different light sources: LED with steady, rotary, fixed or blinking led of different powers. Flashing with XENON tube of different powers. Four flashing frequencies are selectable. It is possible to control the beacon and the sounder or separately via a telephone line. Housing and bracket are made of stainless steel 316L, body covered with UV resistant paint.

4.5 Rating
Tags :- ss316L combination Sounder beacon,

Operating Temperature: -40°C to + 70°C Humidity: Up to 95% RH Material: enclosure and Bracket in Stainless Steel 316L IP rating: IP66 Enclosure Colour: Red ,Blue, Black, others colour on customer request Lens: Tempered borosilicate glass 3.3 colour Red, Yellow (Amber), Blue, Green, Clear. Optional: lens guard in stainless steel Power Supply: 12-48V DC/AC or 100-240V AC Power Consumption: Xenon:2 Joule: 4W (Max); 5J: 10W (Max);10J: 15W (Max);15J: 20W(Max); 21J: 25W(Max); LED: 5 W Certificate: NEMKO 13ATEX1566X, IECEX NEM 13.0036X Marking: II 2 GD Ex d IIC T4 … T6 Gb, Ex tb IIIC T135°C … T85°C Cable Entry: 4* M20, M25, 1/2” NPT, 3/4”NPT or Others on request Electromagnetic: CE0470 Marked Other: Telephone Initiated Function Available. Twin Xenon tube type optional. Sound recording or customization. Build-in volume control
