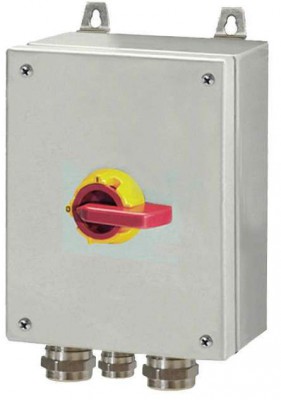

Ex E DE1GW In Carbon Or Stainless Steel

The junction boxes DEIGW Increased safety – Group IIC – Painted steel or stainless steel AISI 316L These junction boxes series are ideal for environments in the presence of chemical agents, corrosion resistant and suitable for very high and very low ambient temperatures. The maximum number of terminals depends of terminals section, operating temperature and required temperature class. They are equipped with a mounting plate and the fixing brackets. They can also be equipped with push buttons, selector switches, pilot lights, measurement instruments and are available in other sizes.

4.5 Rating

Material: Carbon steel painted or stainless steel AISI 316L
IP rating:  IP65/66 according to EN/IEC 60529
Temperature range:
-40°C … +60°C (T4)
-40°C … +50°C (T5)
-40°C … +40°C (T6)
Certificate: INERIS 03ATEX0006
Marking
II 2 GD
Ex e IIC T6 … T4 Gb
Ex tb IIIC T85°C … T135°C Db
Surface treatment Carbon steel: painting RAL 7035, other colour on request
Stainless steel: bead blasting as standard or as option electro-polished
Accessories on request:
External hinges
Breather valves
Earth stud in brass or stainless steel
Cover locking facilities
Gland plates
Cable glands
