Product Details

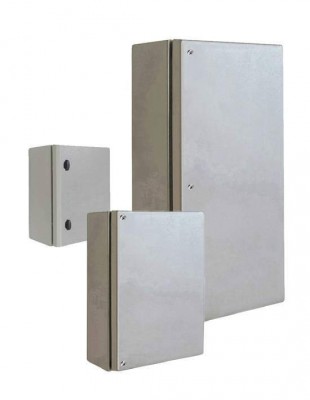

Ex E DE1GW Carbon Steel And AISI 316L Control Cabinets

The Ex e DE1GW control cabinets are designed for making solutions or systems in harsh environments, they made of carbon steel or stainless steel. They meet the use requirements for ONSHORE and OFFSHORE and the highest level of protection in hazardous area. They can also be equipped with push buttons, selector switches, pilot lights, measurement instruments. They are equipped with a mounting plate and the fixing brackets.

4.5 Rating

Material: Carbon steel painted or stainless steel AISI 316L
IP rating: IP65/66 according to EN/IEC 60529
Temperature range:
-40°C … +60°C (T4)
-40°C … +50°C (T5)
-40°C … +40°C (T6)
Certificate: INERIS 03ATEX0006
Marking:
II 2 GD
Ex e IIC T6 … T4 Gb
Ex tb IIIC T85°C … T135°C Db
Surface treatment:
Carbon steel: painting RAL 7035, other colour on request
Stainless steel: bead blasting
Accessories on request:
External hinges – Breather valves – Earth stud- Cover locking facilities – Gland plates Cable glands – Electro polished treatment
