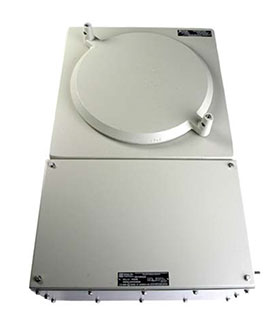

IIC DE8WH Carbon Steel Cover In Aluminium

The DE8WH range of Ex d IIC enclosures range comprises many standard sizes of enclosures manufactured in painted carbon steel. Can be configured as Ex d direct entry or as an Ex de combination for indirect entry. If required, several enclosures can be assembled on a frame with separate or common Ex e/i junction boxes. The enclosures can be delivered empty with U component certificate or supplied fully assembled according to customer request

4.5 Rating

Material: Carbon steel , cover in aluminum copper free
External painting: polyurethane RAL7032 other on request
IP rating: IP65-66
Operating temperature:
-20°C to +40°C (+50°C, +60°C)
Approvals as equipment:
ATEX – INERIS 03ATEX121X
IECEx – INE 14.0010X
Approvals as component:
ATEX – INERIS 14ATEX9004U
IECEx – INE 14.0009U
Ex-code as equipment: II 2 GD or II 2 (1) GD or II 2 (2) GD – Ex d IIC T6 to T4 Gb – Ex tb IIIC T85°C to T135°C Db or Ex d [ia Ga] IIC T6 Gb – Ex tb [ia Da] IIIC T85°C Db or Ex d [ib] IIC T6 Gb – Ex tb [ib] IIIC T85°C Db
Ex-code as component: II 2 GD
Ex d IIC Gb or Ex tb IIIC Db
Drain: Can be supplied with drain plug and/or devices for purge
