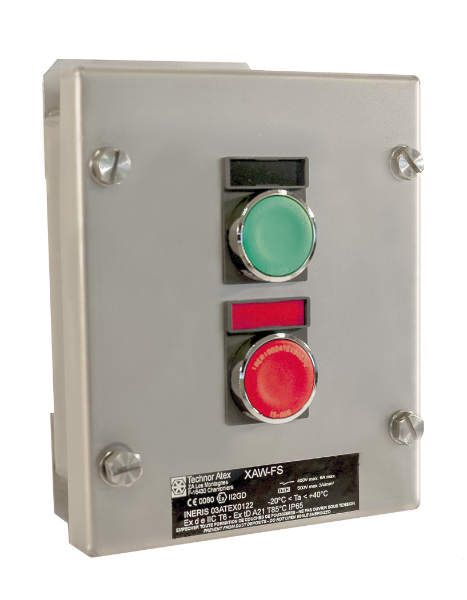

Ex E XAWFS In Stainless Steel

The control stations XAWFS, made in stainless steel AISI 316L, are equipped with our extensive range of robust and flexible control and signalling units HarmAtex, They combine the functions start and stop for motors, fans, pumps …, and they can be provided with measuring instruments for current control, voltage or other physical quantities. The functions can be predefined or determined according to the requirement of the application. Up to 52 control and signalling units can be installed on the XAWFS control units.

4.5 Rating

Material: stainless steel AISI 316 L
Operating temperature: -20°C to +40°C
IP rating: IP65/66
Contact element:
Ith = 10 A; Ui = 415 V
AC
Ue = 380 V; Ie = 1,9 A or
Ue = 240 V; Ie = 3 A or
Ue = 120 V; Ie = 6 A
DC
Ue = 250 V; Ie = 0,27 A or
Ue = 125 V; Ie = 0,55 A or
Ue = 24 V; Ie = 2,87 A
Approvals: INERIS03ATEX0122 / DNV10A TEX90171
Ex-code: II 2 GD Ex e II, Ex emb II, Ex de IIC Ex demb IIC, Ex tD A21
